Carlow Concrete Tanks
Design
In principle, we design to four basic classifications; Full Retention, Bypass, Class I and Class II. Classes I and II pertain to the Eurocode ISEN858 (Separator Systems for Light Liquids Pt. 1). All our separator range are certified to EN858 Part 1.Our designs comply with the requirements of the EPA Wastewater Treatment Manuals:- – Preliminary Treatment: Part 5: Oils, Grease and Fats- Primary Secondary and Tertiary Treatment: Part ll
- EN858 Part 1
Carlow Tanks Grit Trap and Oil Interceptor
Description of basic type – Class l & ll
The European Standard EN 858-1 refers to two classes of seperator and the performance results achieved under standard test conditions.
Separator Selection
The flowchart below will provide a guide to the selection of the correct separator type for a particular drainage application. Please click here to view flowchart for the correct separator selection.Carlow Tanks can supply and install the following range of separators:
- Bypass Seperators (4.0 – 84L/sec)*
- Full Retention Seperators (3.0 – 60L/sec)*
- Forecourt Seperators (10,000L)
- Wash Down Seperators (3.0 – 80L/sec)*
- Silt Traps
- Grease Traps
*Larger flow rates and/or special parameters available on request
Advantages of Carlow Tanks Seperators
- Certified to EN858 Part 1
- Ease of Installation
- Manufactured from Concrete 70N
- Suitable for Traffic Loading
- Speed of Installation
- Reduced Civil Costs – no expensive concrete backfill
- 15 Year Structural Guarantee

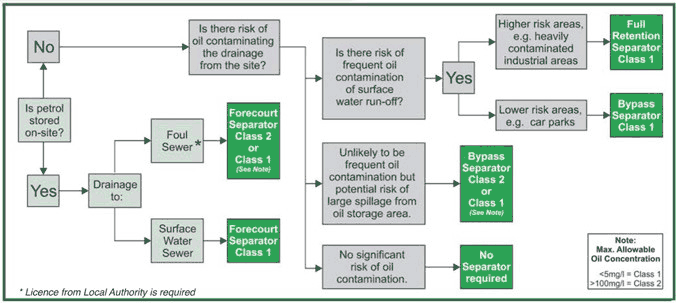

Flow Chart for the correct Separator selection
Carlow Tanks Grit Trap and Oil Interceptor
Oil, Petrol & Grease Separators
Bypass Separators
CP 6 BP Bypass Separator
CP 8 BP Bypass Separator
CP 10 BP Bypass Separators
CP 20bp Bypass seperator Dec 08
CP4bp variable Bypass Dec 08
CP33BP. Bypass Seperator Dec 08
Full Retention Separator Drawings
2008 Forecourt Seperator
CP3FR Rev A
CP6FR Rev A
CP10FR Rev A
CP20FR Rev B
CP25FR Rev A
CP35FR Rev A
CP50FR Rev A
CP60FR Rev A
